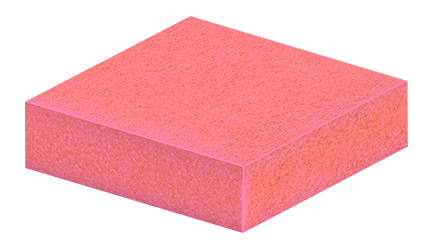

Corecell™ I
Reliable. Balanced. Versatile.
Structural SAN foam core for wide variety of applications
Gurit Corecell I is a general-purpose structural SAN foam designed to deliver reliable performance across a wide range of applications. Combining well balanced mechanical properties, thermal stability, and ease of processing, it is the versatile choice for cost-efficient yet high-quality sandwich construction.
Corecell I is ideal for various marine vessel components, as well as industrial applications such as lightweight aircraft components, modular vehicle tracks, and any application where PVC may be considered.
Key Benefits of Corecell I
Balanced strength and toughness
High shear modulus and excellent compressive performance provide stiffness and stability without compromising toughness – ideal for panels under in-plane or compressive load
Lightweight and efficient
Superior compressive modulus x shear modulus ratio helps stabilise lighter skins, reducing overall structural weight and cost while maintaining strength
Low resin absorption
Fine, homogeneous cell structure ensures low resin uptake for lighter laminates and improved cost efficiency
Thermally stable and durable
Excellent long-term thermal stability supports a wide processing window and consistent performance over time
Easy to machine and handle
Low dust generation, and fast cutting speeds extend tool life and enhance processing efficiency compared to PVC foams
Versatile formats and finishes
Available with all standard Gurit finishes and in larger sheet sizes than other core materials for efficient nesting and kitting
Processing and Compliance
- Compatible with epoxy, polyester, and vinyl ester resin systems.
- Processes include infusion, hand lamination, and thermoforming.
- Available in sheet or pre-cut kits, with standard finishing options for maximum flexibility in production.
- DNV, ABS and Lloyd’s Register approved. (BV and IRS certifications in progress.)
- Available in the Americas and EMEA regions.
Available Densities and typical ranges
Grade
Density
Sheet Size
Thickness
Corecell I-60
1285 x 2605 mm
3 – 50 mm
Corecell I-80
85 kg/m3
1220 x 2440 mm
3 – 50 mm
Corecell I-100
105 kg/m3
1130 x 2275 mm
3 – 48 mm
Typical Applications
Hull topsides and superstructures
Bulkheads and decks
Engine beds and longitudinal structures
Non-structural partitions and soffits
Industrial panels and lightweight components
The perfect partner
Corecell I complements the high-dynamic performance of Corecell M by offering an excellent property-to-weight ratio for general-purpose marine and industrial use – delivering trusted Gurit quality with optimized value.
Case Studies
Antares Catamarans
Antares Catamarans are based in Argentina, and pride themselves on their personalized and exceptional customer service for their yachts. The vessels are currently built by the team at 40 Grados Sur, which has manufactured them since 2010.
beSpline
beSpline’s unique expertise in creating 3D core kits and Gurit’s range of high-quality core materials generated an exceptional opportunity, to revolutionize the way that motocross tracks are manufactured.
Project Daedalus Composite Wings
University of Sherbrooke mechanical engineering students utilized Gurit Corecell I and Gurit Kerdyn structural core foams in their composite wing designs for KR-2 kit planes.
Downloads
Product Brochures
Processing Guides
Datasheets
Gurit Standard Finishes
